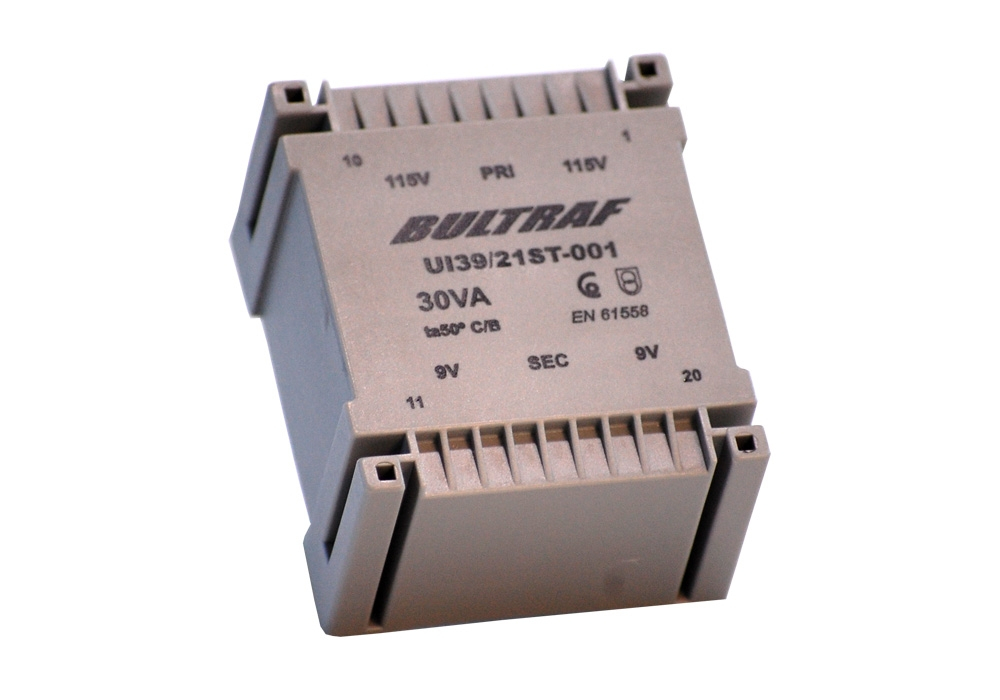

2.2. Low Profile Transformers for Printed Boards.

For power from 18VA to 30VA. Designed for the electronics. Connection method with pins to printed boards.

• type - UI/ST
• input voltage - from 24V to 400V
• output voltage  - from 6V to 24V
• output voltage  - from 2x6V to 2x24V
• frequency - 50-60HZ
• isolation class  - В/130^оС/
• ambient temperature  - +70^оС
• protection class  - II
• dielectric strength  - 4200V
• short-circuit protection - (non) proof
• core type  - EI DIN 41302
• IEC Norm - EN 61558
